Before Order:
1. This model is Hikvision original IP Camera , it support upgrade .
2. Our store support shipping from different warehouse , Products shipped from Spain / Russia / United States / Australia warehouse are Free Import Tax , from China are not free .
3. Please contact us if you are an installer or local agent .
4. ‘With Logo’ means 100% original , ‘NO Logo’ means OEM Version (function same but no logo) .
Feature:
DS-2CD2347G1-LU

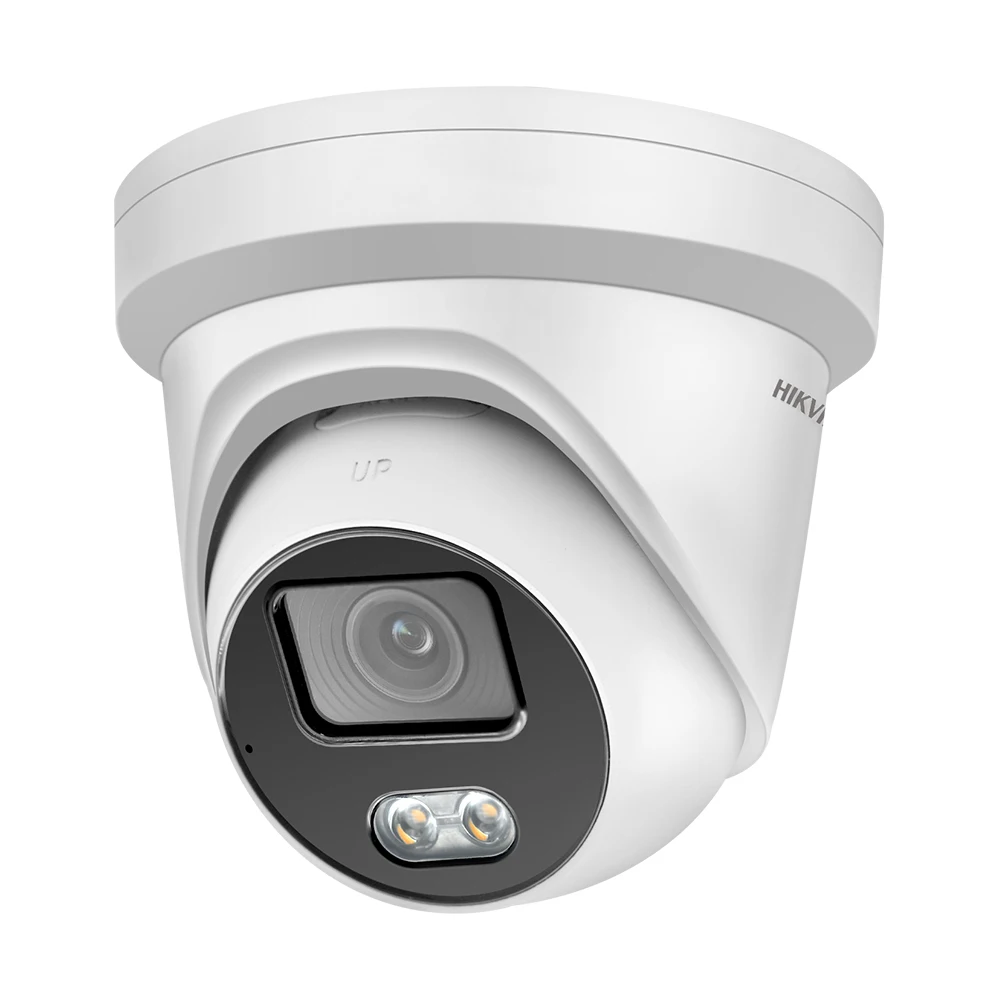

4 MP ColorVu Fixed Turret Network Camera
> Max. 2688 × 1520 @30fps
> 4 mm/6 mm fixed lens
> H.265+, H.264+
> 120dB WDR
> Built-in mic (Optional)
> 12 VDC & PoE (802.3af, class 3)
> Built-in micro SD/SDHC/SDXC slot, up to 128G
> BLC/3D DNR/HLC/ROI
> 0.0014 Lux @ (F1.0, AGC ON), 0 Lux with Light
> Full time color
DS-2CD2347G2-LU
4 MP Acusense ColorVu Fixed Turret Network Camera
> Max. 2688 × 1520 @30fps ,High quality imaging with 4 MP resolution
> 2.8 mm/4 mm/6 mm fixed lens
> H.265+, H.264+
> 120dB WDR,Clear imaging against strong backlight due to 130 dB WDR technology
> Built-in microphone for real-time audio security(-U)
> 12 VDC & PoE (802.3af, class 3)
> Built-in micro SD/SDHC/SDXC slot, up to 256G
> Focus on human and vehicle targets classification based on deep learning
> 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
> 24/7 colorful imaging
> Water and dust resistant (IP67)

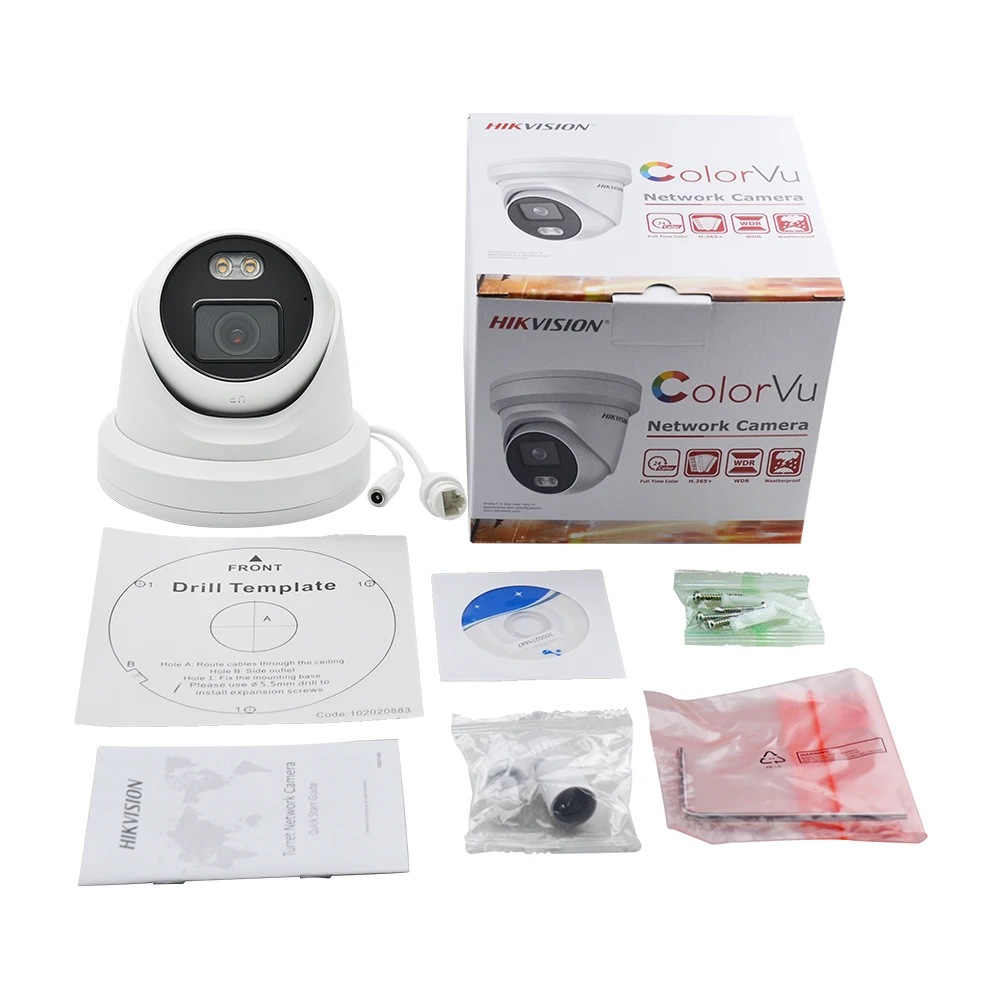

Pack List:
1. 1x Hikvision Original IP camera DS-2CD2347G1-LU or DS-2CD2347G2-LU with original box .
(Choose ‘NO Logo’ you will get a camera no logo and box no logo)
2. 1x User manual .
3. 1x Waterproof plug .
4. Installation tool .
5. 1x screws bag.
6. 1x Drill Template .
Details:
Camera DS-2CD2347G1-LU
Image Sensor : 1/1.8" Progressive Scan CMOS
Signal System : PAL/NTSC
Min. Illumination : 0.0014 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter time : 1/3 s to 1/100,000 s
Slow shutter : Support
Lens : 4 mm, horizontal FOV: 94°, vertical FOV: 48°, diagonal FOV: 115°
6 mm, horizontal FOV: 57°, vertical FOV: 31°, diagonal FOV: 67°
Lens Mount : M16
Adjustment Range : Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Day& Night : Auto
Wide Dynamic Range : 120 dB
Digital noise reduction : 3D DNR
Focus : Fixed
2.Compression Standard
Video Compression : H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate : 32Kbps~16Mbps
3.Image
Max. Image Resolution : 1920 x 1080
Sub Stream : 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Frame Rate : 50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720);60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
Third Stream : 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288);60Hz: 30fp s(1280 × 720, 640 × 360, 352 × 240)
Image Enhancement : BLC/3D DNR/HLC/ROI
ROI : Support 1 fixed region for main stream and sub-stream separately
Day/Night Switch : Day/Night/
4.Network
Network Storage : microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function : One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
System Compatibility : ONVIF (Profile S, Profile G),ISAPI
5.Interface
Audio : 1 audio input (built-in mic), mono sound(-U)
Communication Interface : 1 RJ45 10M / 100M Ethernet interface
On-board storage : Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button : Yes
6.Smart Feature-set
Behavior Analysis : Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Line Crossing Detection : Cross a pre-defined virtual line
Intrusion Detection : Enter and loiter in a pre-defined virtual region
Unattended Baggage : Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal : Objects removed from the pre-defined region, such as the exhibits on display.
7.General
Operating Conditions : ‘-30 °C ~ 60 °C (-22 °F ~ 140 °F);Humidity 95% or less (non-condensing)
Power Supply : 12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3)
Power Consumption : 12 VDC, 0.5 A, max. 6 W;PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 7.5 W
Weather Proof : -L model: IP67 -LU model: IP66

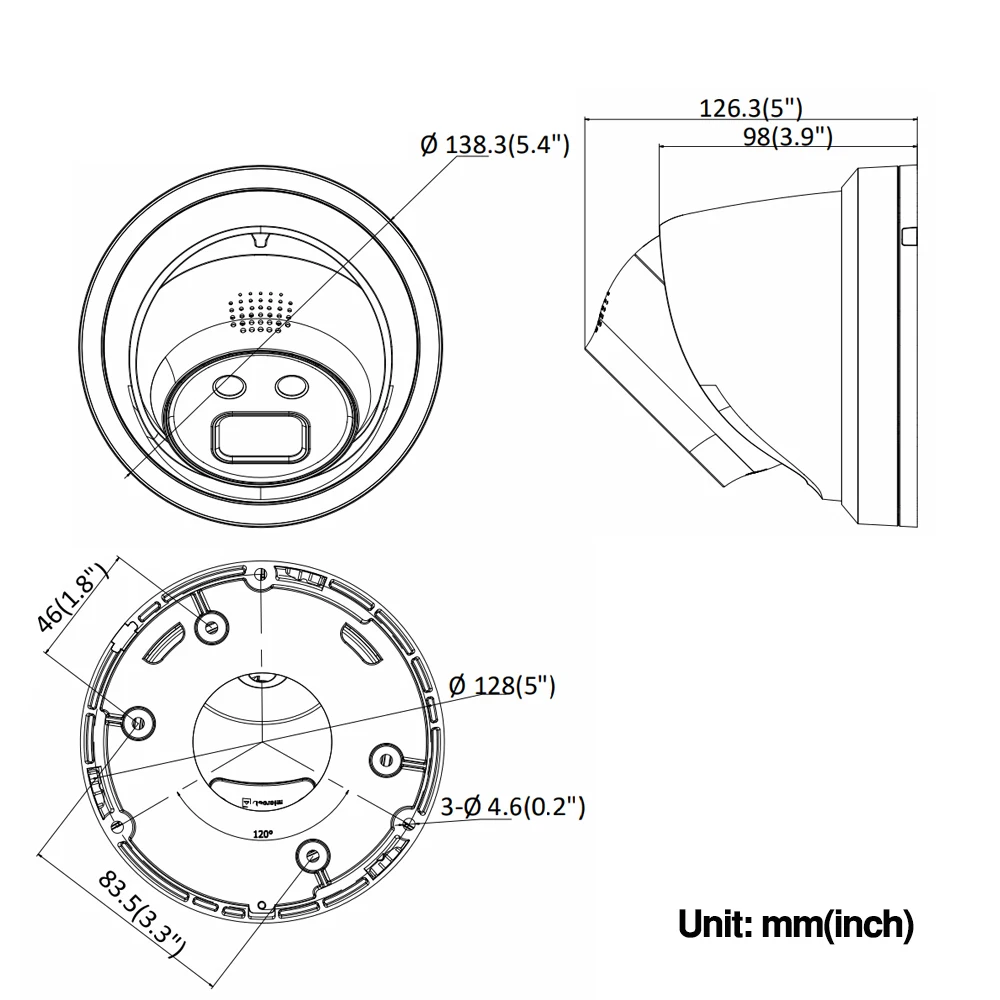

Dimensions : Camera: Φ 138.3 × 125.2 mm (Φ 5.4" × 4.9");With package: 170 × 170 × 150 mm (7" × 7" × 5.9")
Weight : Camera: 575 g (1.3 lb.);With package: 833 g (1.8 lb.)
Camera DS-2CD2347G2-LU
Image Sensor : 1/1.8" Progressive Scan CMOS
Min. Illumination : Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
Shutter Speed : 1/3 s to 1/100,000 s
Slow Shutter : Yes
P/N : P/N
Wide Dynamic Range : 130 dB
Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
2.Lens :
Lens Type : Fixed focal lens, 2.8, 4, and 6 mm optional
Iris Type : Fixed
Lens Type & FOV : "2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134° 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°"
Depth of Focus : "2.8 mm, 2.5 m to ∞ 4 mm, 3.5 m to ∞
6 mm, 7.5 m to ∞"
Aperture : F1.0
Lens Mount : M16
3.DORI :
DORI : "2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m"
4.Illuminator :
Supplement Light Type : White Light
White Light Range : 30 m
Smart Supplement Light : Yes
5.Video :
Max. Resolution : 2688 × 1520
Main Stream : "50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)"
Sub Stream : "50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)"
Third Stream : "50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings."
Video Compression : "Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings."
Video Bit Rate : 32 Kbps to 8 Mbps
H.264 Type : Baseline Profile/Main Profile/High Profile
H.265 Type : Main Profile
H.264+ : Main Stream supports
H.265+ : Main stream supports
Bit Rate Control : CBR/VBR
Scalable Video Coding (SVC) : H.264 and H.265 encoding
Region of Interest (ROI) : 1 fixed region for main stream and sub-stream
6.Audio :
Environment Noise Filtering : -U: Yes
Audio Sampling Rate : -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression : -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate : "-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)"
7.Network :
Simultaneous Live View : Up to 6 channels
API : Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols : "TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP"
User/Host : Up to 32 users. 3 user levels: administrator, operator and user
Security : "Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface"
Network Storage : "MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported"
Client : iVMS-4200, Hik-Connect, Hik-Central
Web Browser : "Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+"
8.Image :
SNR : ≥ 52 dB
Day/Night Switch : Auto, Schedule
Image Enhancement : BLC, HLC, 3D DNR
Image Parameters Switch : Yes
Image Settings : "Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser"
9.Interface :
Built-in Microphone : -U: Yes
On-board Storage : Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset : Yes
Communication Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
10.Event :
Basic Event : "Motion detection (human and vehicle targets classification), video tampering alarm,
exception"
Smart Event : Scene change detection
11.Deep Learning Function :
Face Capture : Yes
Perimeter Protection : "Line crossing detection, intrusion detection, region entrance detection, region exiting
detection"
12.General :
Linkage Method : "Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger
capture, send email"
Firmware Version : V5.5.112
Web Client Language : "33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian"
General Function : "Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel
counter"
Software Reset : Yes
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
"Startup and Operating
Conditions" : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply : "12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3"
"Power Consumption and
Current" : "12 VDC, 0.55 A, max. 6.6 W
PoE (802.3af, 36 V to 57 V), 0.22 A to 0.13 A, max. 7.6 W"
Power Interface : Ø5.5 mm coaxial power plug
Material : Aluminum alloy body, except for trim ring
Screw Material : SUS304
Camera Dimension : Ø138.3 mm × 125.2 mm (Ø5.4" × 4.9")
Package Dimension : 170 mm × 170 mm × 150 mm (7" × 7" × 5.9")
Camera Weight : Approx. 750 g (1.7 lb.)
With Package Weight : Approx. 1055 g (2.3 lb.)
13.Approval :
EMC : "FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)"
Safety : "UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (IEC/EN 60950-1)"
Environment : CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection : IP67 (IEC 60529-2013)
Q&A:
1.Question : What’s the difference between ‘With Logo’ and ‘NO Logo’ ?
Answer :
‘With Logo’ means is Original products for buyer who need devices with logo.
‘NO Logo’ means you can’t find any logo on device/box or firmware but same function as original one , and also search the model on Hikvision official website , this is special offer for the installers or local agents who don’t want his or her customers get any info about the device .
2.Question : What’s the logo on the camera and box ?
Answer :
‘With Logo’: Camera comes with ‘Hikvision’ logo, Package box is original box from hikvision factory .
‘NO Logo’: Camera comes with no logo, Package box also no logo .
3.Question : What client does this camera work with ?
Answer : Client: iVMS-4200
4.Question : How about mobile view on the smart phone?
Answer : Mobile view: Hik-connect or iVMS-4500
5.Question : I do business on hikvision products and I need more discount !
Answer : For bulk purchases and kit customize, please kindly contact us before buying .
