The package includes
1.Only module–only one module without LENs and cable
2.with LEN–contains Module + IR-cut +Focus(F0.95 Blacklight 3.6mm, 6mm Lens for option)
3.with 12V cable–contains one module + 1PCS 12V Cable
4.with 48V POE cable–contain one module + 1PCS Built-in POE Module Cable
Pay Attention!!!
Since there is NO vertical screw to fasten the LENs, we require glue to firmly hold the LENs by default.
But if the lens is fixed with glue, there will be a problem of inability to adjust the focus.
So if you do not want the lens to be fixed with glue, when placing an order, please note that" no glue"
Integrated sealing module
Contains: Module + IR-CUT + LEN (optional lens).
* Cloud server / service is located at (3w points) XMeye.net.
* Default IP: 192.168.1.10
* Login name: admin (case sensitive, not Admin); no password.
important:
(1) CMOS image sensor
(2) Need to use a more powerful PC or XM-NVR to decode / play H.264 / 265 video.

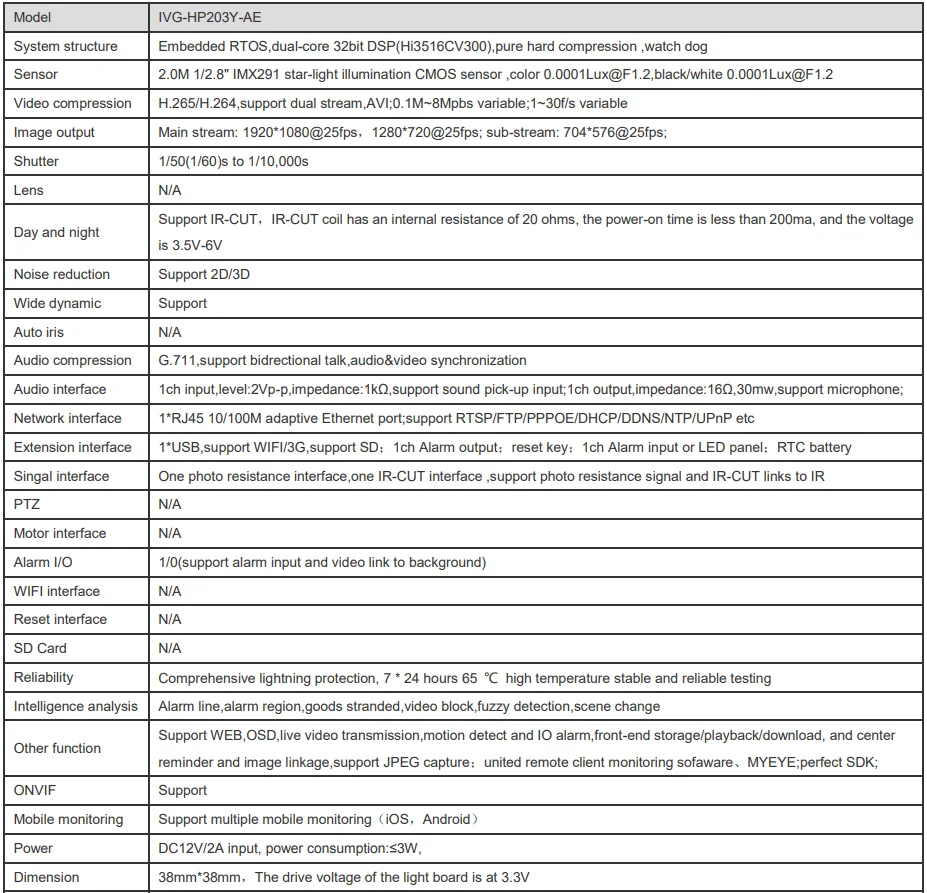

Feature
2.0M star-light illumination HD resolution, clear and fine images, Autofocal;
Support multiple intelligent analysis;
Support 2D/3D noise reduction, digital wide dynamic;
Advanced H.265++/H.265+/H.265/H.264 video compression, Super low rate, high definition quality of image;
Professional anti-lightning, conform to GB/T17626.5 and IEC61000-4-5;
Support ONVIF, access third party；
Support various mobile monitoring(iPhone, Android);
Provide web, CMS, center platform management software MYEYE, provide SDK development
Support cloud technology, easy to achieve network penetration, fro in-line and alarm information pushed

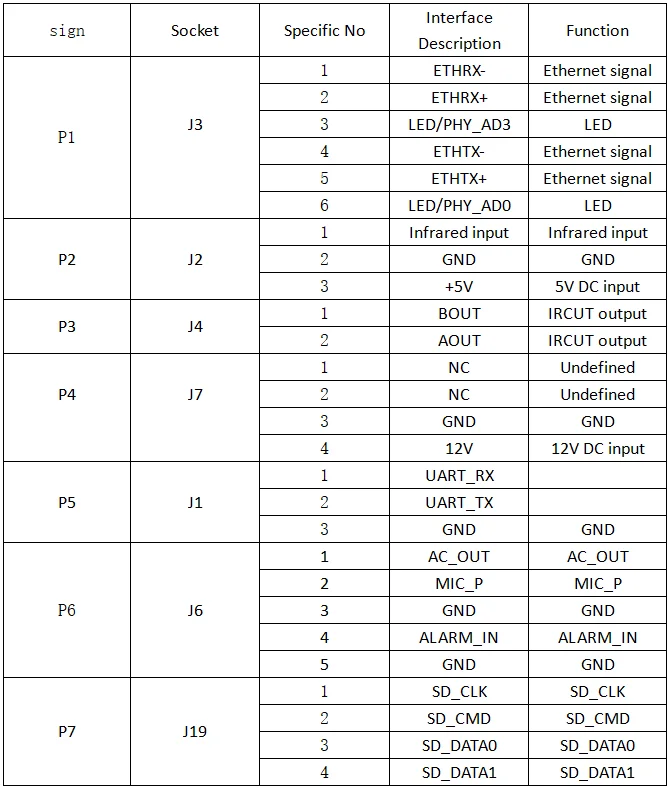

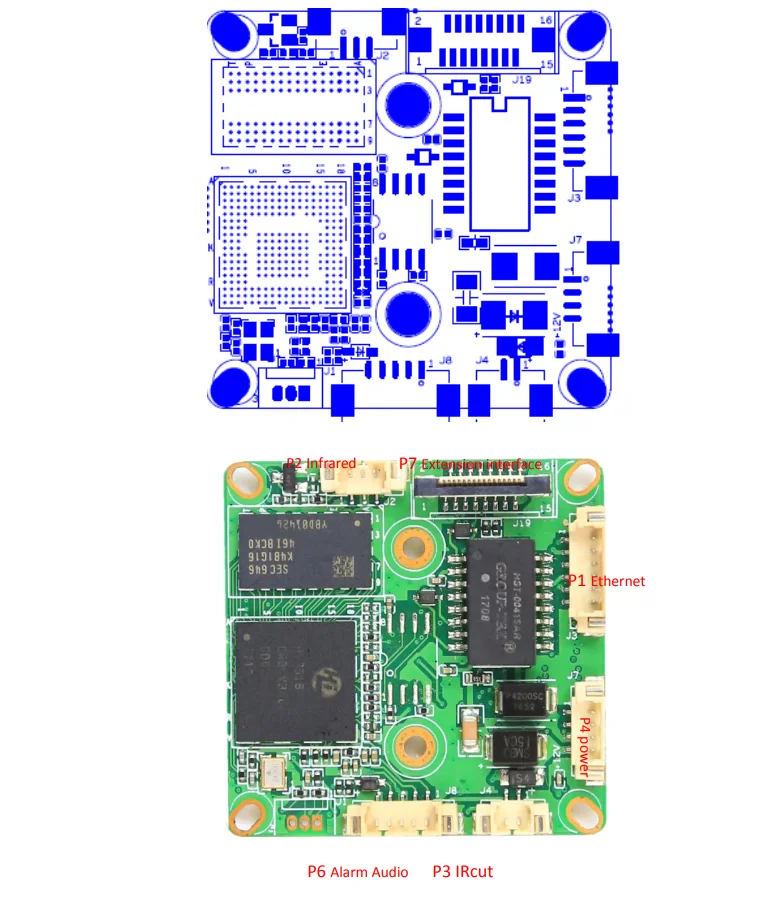

Interface Description
How to make the module support micro sd card for recording and WIFI function?
It can be connected with the expansion board to make the module realize the memory card storage function and WIFI function.(The realization of wifi function also requires program upgrade of the module)
Click the first picture below to enter the detailed introduction interface of the expansion board.
The second one shows that the connected module supports storage function.
