Hikvision 4MP DS-2CD2347G2P-LSU/SL AcuSense ColorVu Panoramic Strobe Light Built-In Mic Speaker Alarm POE Turret Network Camera
The Original Version is 100% original from HIKVISION ,it support firmware updating ! All products in the store have joined the AliExpress worry-free return protection planso please don’t worry any quality problem.
2.About shipment :
If you can order 4pcs cameras,we will try to send items via DHL/UPS/FEDEX .
Most of orders can send out in 48 hours.We will choose the best shipping method for your order according to our experience as different countries has different shipping rules .
3. Aboutwarehouse
we have oversea warehouse[ Spain-EU warehouse],[Russian warehouse],ship from these warehouse, won’t have customs problem and customs fees.
4. About Us
we are top agent of security system and more 10 years experience in this market, with Proffesional after-sale service and suggestion.
DS-2CD2347G2P-LSU/SL
4 MP Panoramic ColorVu Fixed Turret Network Camera
> High quality imaging with 4 MP resolution
> One image that presents all the scenes covered by the camera
> 24/7 colorful imaging
> Efficient H.265+ compression technology
> Clear imaging against strong back light due to 130 dB WDR technology
> Focus on human and vehicle classification based on deep learning
> Active strobe light and audio alarm to warn intruders off
>Water and dust resistant (IP67)
Image Sensor: 2 × 1/2.5" Progressive Scan CMOS
Max. Resolution: 3040 × 1368
Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time: 1/3 s to 1/100,000 s
Angle Adjustment: Pan: -30° to 30°,tilt: -75° to 75°
Lens Type: Fixed focal lens, dual lens, 2.8 mm
Focal Length & FOV: 2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.0
Depth Of Field: 2 m to
DORI: 2.8 mm, D: 38 m, O: 15 m, R: 7.5 m, I: 3.5 m
Illuminator
Supplement Light Type: White Light
Supplement Light Range: Up to 30m
Smart Supplement Light: Yes
Main Stream:
50 Hz: 25 fps (3040 × 1368)
60 Hz: 24 fps (3040 × 1368)
Sub-Stream:
50 Hz: 25 fps (1200 × 536, 960 × 432)
60 Hz: 24 fps (1200 × 536, 960 × 432)
Video Compression:
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR / VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region Of Interest (ROI): 1 fixed region(s) for main stream
Audio Type: Mono sound
Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz /16 kHz / 32 kHz / 44.1 kHz / 48 kHz
Environment Noise Filtering: Yes
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSocket
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR; Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch: Yes
Image Settings: saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 130dB
SNR: 52 dB
Image Enhancement: BLC,HLC,3D DNR
8.Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD / microSDHC / microSDXC / TF card, up to 256 GB
Built-In Microphone: Yes
Built-In Speaker: Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
Audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 , interface type: non-equilibrium
Alarm: 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
Reset Key: Yes
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing
Perimeter Protection: Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
11.General
Power:
12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Material: Base: metal, cover: metal
Dimension: Ø140 mm × 145.6 mm (Ø5.5 × 5.7")"
Package Dimension: 230 mm × 230 mm × 230 mm (9 × 9 × 9)
Weight: Approx. 920 g (2.0 lb.)
With Package Weight: Approx. 1670 g (3.7 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: 33 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function: Anti-banding, heartbeat, mirror, flash log, pixel counter
Flashing Light: Yes
EMC: FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7
Safety: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
Protection: IP67: IEC 60529-2013
4MP Ultra HD
(low illuminance, high image definition)
24/7 colorful imaging
(Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high performance sensors)
AcuSense Technology
(Focuses on human and vehicle targets classification based on deep learning)

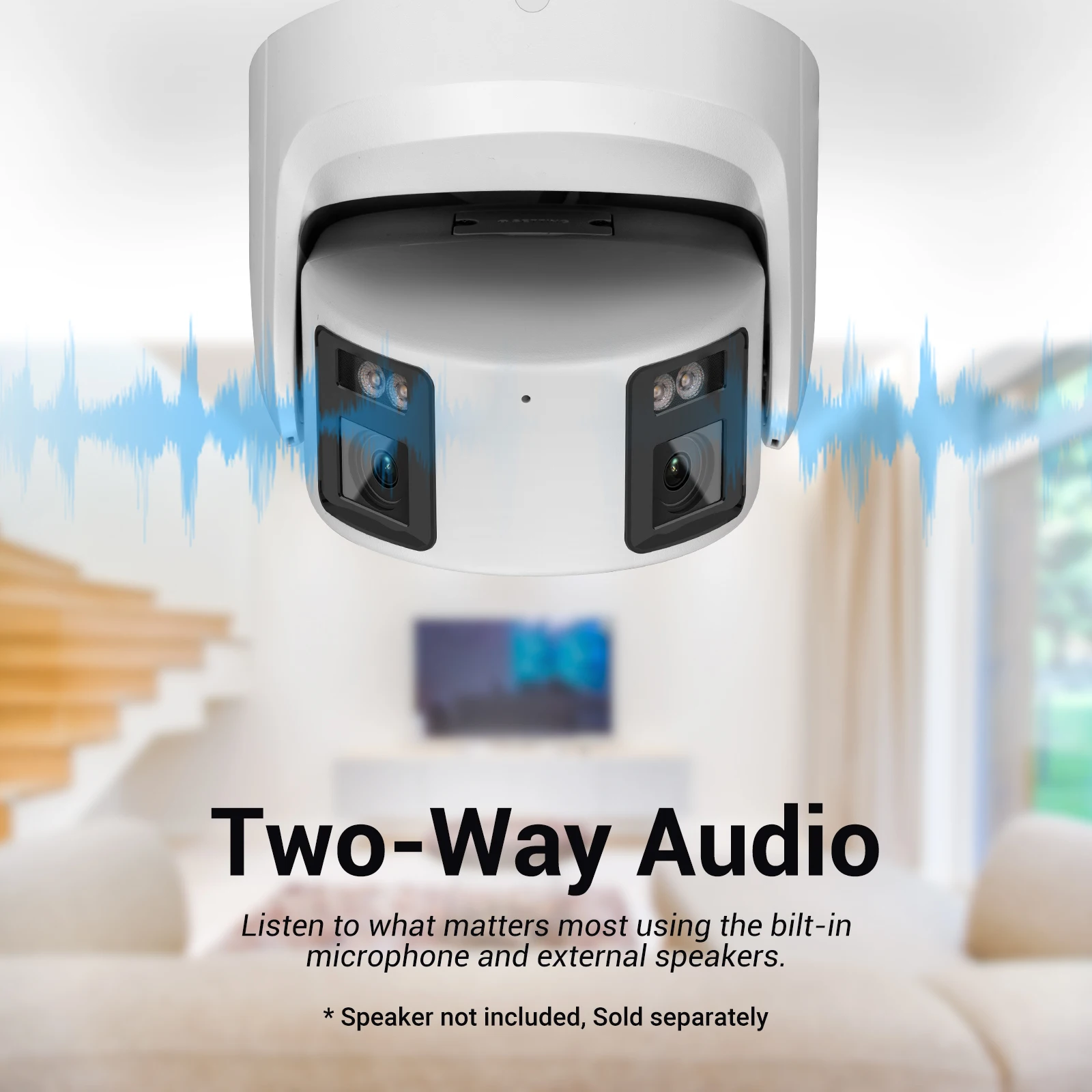

(Built in microphone and speaker, no matter how far away, you can easily talk to the baby, child,family through the camera remotely)
Active strobe light and audio alarm to warn intruders off
